Vacuum Pump for Thin Film Evaporation
What Is Thin Film Evaporation and How Does It Work?
Thin film evaporation is an advanced thermal separation process used to concentrate, purify, or distill heat-sensitive materials. It operates by spreading a liquid into a thin, uniform layer over a heated surface, allowing rapid evaporation under controlled conditions.

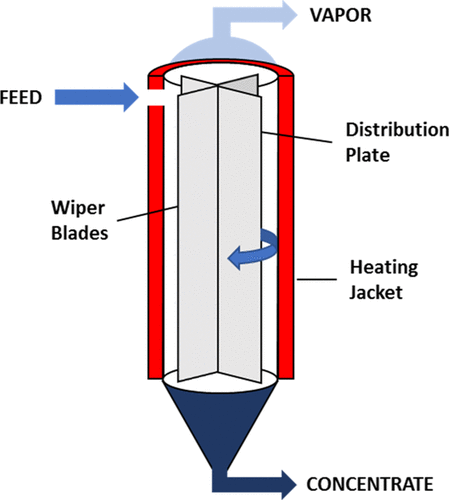

How It Works:
Liquid Distribution: The feed liquid is introduced into the evaporator, where it forms a thin film on the heated surface.
Rapid Evaporation: Heat is applied, causing the volatile components to vaporize quickly while minimizing thermal degradation.
Efficient Separation: The vaporized components are collected and condensed, leaving behind concentrated or purified substances.
Vacuum Integration: A vacuum pump lowers the pressure, reducing the boiling point and enhancing evaporation efficiency, particularly for heat-sensitive materials.
Thin film evaporation is widely used in industries such as pharmaceuticals, chemicals, food processing, and petrochemicals, where precise separation and thermal efficiency are critical.
How Vacculex Vacuum Pumps Provide Solutions
VSP Series Screw Vacuum Pump
The VSP Series Vacuum Pump for Thin Film Evaporation is a dry, oil-free vacuum pump designed to deliver precise and stable vacuum conditions. It utilizes a pair of synchronized, counter-rotating helical rotors to efficiently compress and discharge gas. With no oil seals or lubricants involved in the process, it ensures contamination-free operation, making it ideal for high-purity thin film evaporation applications in pharmaceutical, chemical, and food industries.
MB Series Mechanical Vacuum Booster
The MB Series Vacuum Pump is designed for high-performance thin film evaporation, featuring a five-point bearing system, double oil tank, and nitrogen gas barrier for enhanced durability under high-temperature, high-vacuum, and high differential pressure conditions. With internal coating protection against corrosion and optional single-point or five-point mechanical seals, along with a labyrinth seal design, it ensures long-lasting reliability and optimal evaporation efficiency.
Why Choose Vacculex Vacuum Pump for Thin Film Evaporation?
Thin film evaporation is a highly efficient separation and concentration process that relies on precise vacuum control to enhance evaporation rates while protecting heat-sensitive materials. Vacculex Dry Vacuum Pumps are engineered to optimize this process, delivering unparalleled performance, reliability, and efficiency.
Deep & Stable Vacuum Levels
Thin film evaporation requires low-pressure conditions to facilitate gentle evaporation at reduced temperatures. Vacculex pumps provide:
✔ Consistent vacuum stability to enhance evaporation efficiency.
✔ Optimized pressure control to prevent thermal degradation.
✔ Precise vacuum modulation for sensitive compounds.
Oil-Free & Contamination-Free Operation
Unlike traditional oil-sealed vacuum pumps, Vacculex dry vacuum pumps eliminate the risk of contamination, ensuring:
✔ High-purity processing for pharmaceuticals, food, and chemicals.
✔ No oil backstreaming, maintaining product integrity.
✔ Reduced maintenance costs with a clean, dry system.
Superior Heat Management & Energy Efficiency
Thin film evaporation is used for heat-sensitive materials such as pharmaceuticals, plant extracts, and specialty chemicals. Vacculex vacuum pumps:
✔ Prevent overheating by maintaining low-temperature evaporation.
✔ Reduce thermal degradation for bioactive compounds.
✔ Optimize energy consumption, lowering operational costs.
Corrosion-Resistant & Durable Design
Many thin film evaporation applications involve aggressive solvents, acids, or reactive substances. Vacculex pumps are:
✔ Designed with corrosion-resistant materials to ensure longevity.
✔ Capable of handling harsh chemicals without performance loss.
✔ Engineered for industrial-scale durability with minimal downtime.
Where Are Vacuum Pumps Used in Thin Film Evaporation?
Reducing Boiling Points for Gentle Evaporation
Thin film evaporation relies on vacuum technology to lower boiling points, allowing heat-sensitive materials to evaporate at much lower temperatures without degradation.
✔ Preservation of Heat-Sensitive Compounds – Reduces thermal stress on pharmaceuticals, botanicals, and specialty chemicals, maintaining structural integrity.
✔ Efficient Separation of Volatile Components – Enables precise fractionation of solvents, essential oils, and bioactive compounds.
✔ Optimized Energy Consumption – Lowers required heat input, reducing processing costs and thermal degradation risks.
✔ High-Purity Yield – Ensures minimal product loss and maximized recovery of valuable materials.
Removing Solvents & Volatile Compounds
Vacuum-assisted thin film evaporation is widely used for solvent removal and purification in pharmaceutical, food, and chemical industries.
✔ Solvent Recovery & Recycling – Enables sustainable recycling of organic solvents used in drug formulation, botanical extraction, and industrial processing.
✔ High-Purity Extractions – Facilitates the removal of residual solvents from cannabinoids, flavors, and fine chemicals, ensuring compliance with purity standards.
✔ Thermal Stability of End Products – Prevents overheating and degradation, critical for pharmaceuticals, nutraceuticals, and bio-based materials.
✔ Enhanced Process Safety – Supports closed-system operations, minimizing exposure to hazardous solvents and vapors.
Enhancing Mass Transfer Efficiency
A controlled vacuum environment is essential for improving evaporation rates and separation efficiency in thin film processes.
✔ Faster Evaporation & Shorter Processing Time – Enhances throughput in high-volume industrial applications.
✔ Efficient Separation of Light & Heavy Components – Achieves precise molecular separation in chemical and pharmaceutical formulations.
✔ Stable & Uniform Film Formation – Ensures consistent evaporation for uniform product quality.
✔ Scalability for Industrial Applications – Adapts to laboratory, pilot, and full-scale production, maintaining process reliability.
Request a Quote for Vacculex Dry Vacuum Pump Today!
Looking for a high-performance thin film evaporation vacuum pump? Contact us today to discuss your application and receive a customized quotation.
FAQ
Thin film evaporation is an advanced separation technique used to concentrate, purify, or distill heat-sensitive substances under vacuum conditions. This process is widely utilized in industries such as pharmaceuticals, chemicals, food processing, and biotechnology to achieve precise thermal separation without degrading delicate compounds.
The process involves spreading a liquid into a thin, uniform film over a heated surface while maintaining a controlled vacuum environment. This enhances evaporation efficiency and minimizes thermal stress on the product.
Feed Distribution – The liquid enters the evaporator and is evenly distributed into a thin film using a rotating or falling-film mechanism.
Heat Transfer & Evaporation – The thin film is heated, causing rapid evaporation of volatile components at reduced boiling points.
Separation Under Vacuum – A vacuum pump maintains low pressure, allowing sensitive compounds to evaporate at lower temperatures, preventing degradation.
Condensation & Collection – The evaporated vapors are condensed and collected separately, while the remaining concentrated product exits the system.
Vacuum technology is essential in thin film evaporation, enabling low-temperature separation, rapid processing, and high-purity product recovery. Vacculex vacuum pumps play a critical role in multiple stages of the process, ensuring optimal efficiency and minimal thermal degradation.
Key Applications of Vacuum in Thin Film Evaporation
1. Reducing Boiling Points for Gentle Evaporation
✔ A vacuum pump lowers the ambient pressure, reducing the boiling points of volatile components.
✔ This allows heat-sensitive substances like pharmaceuticals, botanical extracts, and fine chemicals to evaporate at lower temperatures, preventing degradation.
2. Enhancing Mass Transfer & Evaporation Efficiency
✔ Lower pressure conditions increase the evaporation rate, allowing rapid separation of solvents and volatile components.
✔ This results in shorter residence times, reducing heat exposure and preserving product integrity.
3. Vapor Collection & Condensation
✔ The vacuum system directs evaporated vapors into a condenser where they are cooled and collected.
✔ This ensures efficient separation of volatile compounds while preventing contamination.
4. Maintaining a Controlled Processing Environment
✔ A well-regulated vacuum prevents oxidation and unwanted chemical reactions, preserving product purity.
✔ It enables continuous processing, improving production efficiency and scalability.
Selecting the right vacuum pump is essential for optimizing thin film evaporation efficiency, ensuring stable vacuum conditions, rapid processing, and high-purity separation. The ideal vacuum pump should provide precise pressure control, low operational noise, and high chemical resistance to handle different applications.
Top Vacuum Pumps for Thin Film Evaporation
1. Dry Screw Vacuum Pumps – Best for High-Purity & Solvent Recovery
✔ Oil-free operation prevents contamination, making it ideal for pharmaceutical, food, and fine chemical applications.
✔ Capable of handling corrosive solvents and aggressive vapors.
✔ Provides high pumping speeds and deep vacuum levels, ensuring efficient evaporation.
2. Rotary Vane Vacuum Pumps – Best for General-Purpose & Cost-Effective Solutions
✔ Creates a consistent vacuum for medium-to-low boiling point solvents.
✔ Suitable for basic chemical processing and solvent removal.
✔ Requires regular maintenance due to oil lubrication but offers high reliability.
3. Liquid Ring Vacuum Pumps – Best for Heat-Sensitive & Moisture-Laden Applications
✔ Handles wet vapors and condensable gases effectively.
✔ Excellent for water-based solutions, bio-based materials, and botanical extractions.
✔ Provides isothermal compression, minimizing heat impact on sensitive products.
4. Scroll Vacuum Pumps – Best for Lab-Scale & R&D Applications
✔ Oil-free and low-maintenance, ensuring clean processing conditions.
✔ Achieves quiet and vibration-free operation, perfect for laboratory settings.
✔ Works well for small-scale pharmaceutical, chemical, and biotech applications.
Why Choose Vacculex Vacuum Pumps for Thin Film Evaporation?
✔ Precise Vacuum Control – Maintains consistent low pressures for optimal evaporation.
✔ High Chemical Resistance – Handles a wide range of solvents and aggressive vapors.
✔ Energy-Efficient & Low Maintenance – Reduces operating costs while improving system longevity.
✔ Scalable Solutions – Supports both small lab setups and large industrial-scale production.
Vacculex vacuum pumps provide superior performance, reliability, and efficiency, making them the ideal choice for thin film evaporation across pharmaceutical, chemical, food, and biotech industries.
Selecting the right vacuum pump is crucial for optimizing thin film evaporation efficiency, ensuring stable vacuum levels, rapid solvent removal, and high product purity. Below are key factors to consider when choosing the best vacuum pump for your process.
1. Required Vacuum Level & Pressure Control
✔ Thin film evaporation requires a precise vacuum range, typically between 0.1 to 10 mbar, depending on the boiling point of the substances.
✔ The pump must provide stable vacuum control to prevent pressure fluctuations that can affect separation efficiency.
2. Chemical Compatibility & Corrosion Resistance
✔ Many applications involve aggressive solvents, acids, or reactive chemicals.
✔ Choosing a vacuum pump with corrosion-resistant materials (e.g., stainless steel, PTFE coatings) extends lifespan and ensures reliability.
3. Pumping Speed & Throughput Capacity
✔ A higher pumping speed ensures faster vapor removal, reducing residence time and enhancing process efficiency.
✔ The pump should be sized according to the evaporation rate and system volume to prevent pressure buildup.
4. Oil-Free vs. Oil-Sealed Operation
✔ Oil-Free Pumps (Dry Screw, Scroll, Diaphragm) – Ideal for clean processes, eliminating the risk of oil contamination.
✔ Oil-Sealed Pumps (Rotary Vane, Diffusion) – Provide deep vacuum levels but require regular maintenance and risk oil backstreaming.
5. Handling of Condensable Vapors
✔ Some pumps struggle with moisture-laden or condensable vapors, leading to operational inefficiencies.
✔ Liquid ring vacuum pumps or pumps with gas ballast valves help manage vapor loads effectively.
Choosing the right thin film evaporation system is crucial to ensuring efficient, high-quality separation of volatile components while preserving sensitive substances. When purchasing a thin film evaporation system, several key factors must be considered to ensure optimal performance, cost-effectiveness, and suitability for your specific application. Below are the essential points to keep in mind:
1. Evaporation Capacity & Throughput
✔ System Size & Scalability: Consider the amount of material that needs to be processed, whether for small-scale laboratory work or large-scale industrial production.
✔ Flow Rate & Capacity: Ensure the system can handle the required feed rate and evaporation volume without compromising efficiency.
✔ Efficiency of Vapor Removal: Look for a system that ensures fast vapor separation with minimal residence time, optimizing throughput.
2. Vacuum Pump Integration & Performance
✔ Vacuum Pump Type: Match the vacuum pump with your process requirements (e.g., oil-free dry screw pumps for clean processes, rotary vane pumps for high pumping speeds, or liquid ring pumps for handling condensable vapors).
✔ Vacuum Control: The system should provide precise vacuum regulation to maintain optimal evaporation conditions and prevent inconsistencies in the final product.
✔ Pumping Speed & Efficiency: Ensure the vacuum pump offers sufficient pumping speed to quickly evacuate vapors and maintain the desired low pressure levels for effective evaporation.
3. Temperature Control & Heat Transfer Efficiency
✔ Heating System: The system should include a reliable and efficient heating mechanism, such as jacketed or heated evaporators, capable of providing uniform heat distribution.
✔ Temperature Sensitivity: For heat-sensitive materials, ensure the system offers gentle, low-temperature evaporation to prevent thermal degradation.
✔ Thermal Efficiency: Check for features that optimize energy use during heating, such as insulated heating surfaces and temperature-regulated controllers.
4. Material Compatibility & Corrosion Resistance
✔ Chemical Resistance: Ensure that the system is made from corrosion-resistant materials (e.g., stainless steel, glass-lined components) to handle aggressive solvents and chemicals without damage or contamination.
✔ Material Durability: The system must be built to withstand the abrasive and aggressive nature of certain solvents, ensuring long-term durability and reliability.
5. Ease of Operation & Maintenance
✔ User-Friendliness: Choose a system with intuitive controls, user-friendly interfaces, and clear operational manuals for easy operation and maintenance.
✔ Maintenance Requirements: Consider systems that offer low-maintenance needs, with easy access to key components and self-cleaning features to reduce downtime.
✔ Preventive Maintenance: Look for a system that provides automated alerts for routine maintenance, helping to ensure consistent performance and extend the lifespan of the equipment.
6. Flexibility & Customization
✔ Adjustable Parameters: The system should offer the flexibility to adjust key process parameters, such as vacuum levels, heating temperatures, and feed rates, to accommodate varying production needs.
✔ Modular Design: A modular design allows for easy upgrades or scalability as your production requirements change.
