Vacuum Pump for Freeze Drying

A vacuum freeze-drying system, also known as lyophilization, is a dehydration process that preserves perishable materials by removing water while maintaining their structure and quality. This method is commonly used in the pharmaceutical, food, and biotechnology industries. Here’s how it works:

Step-by-Step Process of Vacuum Freeze Drying:

1. Freezing Phase

• The product is frozen at extremely low temperatures, typically between -40°C and -80°C.
• This freezing turns the water in the product into solid ice, which is crucial for preserving the material’s structure.

2. Primary Drying (Sublimation)

• The system creates a vacuum, reducing the pressure significantly.
• The temperature is slowly increased, causing the ice to sublimate (turn directly from solid to vapor without becoming liquid).
• A condenser captures the vapor and turns it back into ice to remove it from the chamber.
• This phase removes about 95% of the water.

3. Secondary Drying (Desorption)

• The temperature is raised further to remove any remaining bound moisture.
• This phase ensures the product is fully dried and stable for long-term storage.

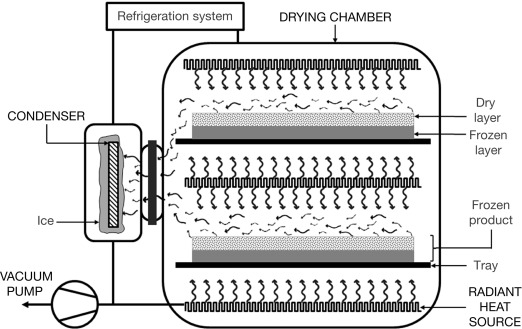

The vacuum plays a crucial role in the freeze-drying (lyophilization) process, primarily in the primary drying (sublimation) and secondary drying (desorption) stages. Here's how it is used:

1. During the Primary Drying Stage (Sublimation)

• After freezing the product, a vacuum pump is activated to significantly reduce the pressure inside the drying chamber.
• The low-pressure environment lowers the triple point of water, enabling ice to sublimate (transition directly from solid to vapor) without passing through the liquid phase.
• The vacuum ensures efficient removal of water vapor, which is then captured by a condenser.
• This phase removes about 95% of the water content.

2. During the Secondary Drying Stage (Desorption)

• The vacuum remains active as the system gradually increases temperature to remove any remaining bound moisture.
• The low-pressure environment enhances the evaporation of residual water molecules that are not removed during sublimation.
• This phase ensures the final product is completely dry and stable for storage.

Why is Vacuum Essential in Freeze Drying?

✔ Lowers the sublimation point, allowing ice to convert directly into vapor.
✔ Prevents melting, which would damage the product’s structure.
✔ Enhances drying efficiency, ensuring moisture is effectively removed.
✔ Protects heat-sensitive materials, as the process occurs at low temperatures.

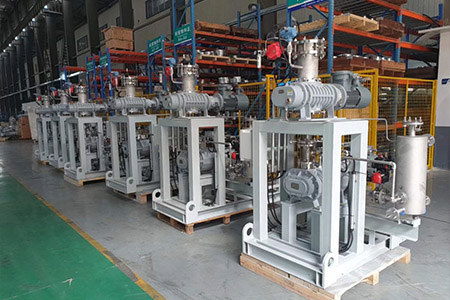

The best vacuum pumps for freeze drying (lyophilization) depend on factors like chamber size, required vacuum level, drying speed, and product sensitivity. The ideal vacuum pump should provide deep vacuum levels, low maintenance, chemical resistance, and high reliability. Here are the top types of vacuum pumps used in freeze drying:

1. Rotary Vane Vacuum Pumps (Oil-Sealed)

✔ Best for: General-purpose laboratory and industrial freeze dryers.
✔ Vacuum Level: ~10⁻³ mbar (high vacuum).
✔ Pros:

• Reliable and efficient.
• Can achieve deep vacuum levels needed for sublimation.
• Widely available and cost-effective.
  ✔ Cons:
• Requires regular oil changes and maintenance.
• Oil contamination risk for sensitive samples.
  ✔ Popular Models:
• Edwards RV Series
• Leybold Trivac
• Agilent MS40+

2. Dry Scroll Vacuum Pumps

✔ Best for: Clean applications, pharmaceuticals, and sensitive materials.
✔ Vacuum Level: ~10⁻² to 10⁻³ mbar.
✔ Pros:

• Oil-free (eliminates risk of contamination).
• Low maintenance and quiet operation.
• Ideal for laboratories and food-grade freeze drying.
  ✔ Cons:
• Higher initial cost than rotary vane pumps.
  ✔ Popular Models:
• Edwards XDS Series
• Agilent TriScroll
• Pfeiffer Scroll Pumps

3. Dry Screw Vacuum Pumps

✔ Best for: Large-scale industrial freeze drying.
✔ Vacuum Level: ~10⁻² to 10⁻³ mbar.
✔ Pros:

• Handles large volumes and high moisture loads.
• Oil-free operation for cleaner processing.
• Energy efficient with lower maintenance costs.
  ✔ Cons:
• Expensive upfront investment.
  ✔ Popular Models:
• Busch COBRA Screw Vacuum Pumps
• Leybold Screwline Series
• Becker VADS Series

4. Turbo Molecular Vacuum Pumps (For Ultra-High Vacuum)

✔ Best for: Advanced research applications and ultra-low pressure freeze drying.
✔ Vacuum Level: ~10⁻⁶ mbar (extremely high vacuum).
✔ Pros:

• Achieves deep vacuum levels for highly precise drying.
• Ideal for pharmaceuticals, biotech, and nanomaterials.
  ✔ Cons:
• Requires backing pump (often a rotary vane or scroll pump).
• Expensive and complex setup.
  ✔ Popular Models:
• Pfeiffer HiPace Turbo Pumps
• Edwards nEXT Series

Best Vacuum Pump Choice Based on Application:

When choosing a vacuum pump for freeze drying, several factors must be considered to ensure efficient, reliable, and contamination-free operation. Here are the key factors to evaluate:

1. Vacuum Level & Pumping Speed

• Vacuum Depth: Freeze drying requires a deep vacuum, typically in the 10⁻¹ to 10⁻³ mbar range.
• Pumping Speed: Measured in liters per second (L/s) or cubic feet per minute (CFM). Higher speeds enable faster moisture removal.
• Consideration: Ensure the pump can achieve and maintain the required vacuum level throughout the drying cycle.

2. Oil-Sealed vs. Oil-Free Pumps

• Oil-Sealed Rotary Vane Pumps: Provide deep vacuum levels but require regular oil changes and risk contamination.
• Oil-Free (Dry) Pumps: Scroll and screw pumps eliminate oil contamination and reduce maintenance but are more expensive.
• Consideration: Choose oil-free pumps for pharmaceuticals, food, and biotech applications.

3. Moisture & Solvent Handling

• Freeze drying generates high moisture content, which can damage standard pumps.
• Best choices:
  • Corrosion-resistant pumps for solvents or acids.
  • Gas ballast features to handle moisture better.
• Consideration: Ensure the pump can handle water vapor loads without performance loss.

4. Noise Level & Maintenance

• Rotary vane pumps are noisy and require frequent maintenance (oil changes, filter replacements).
• Scroll & screw pumps are quieter, oil-free, and lower maintenance.
• Consideration: For continuous operation, choose a low-maintenance pump with fewer service intervals.

When buying a vacuum freeze drying system (lyophilizer), you need to consider several key factors to ensure efficiency, reliability, and suitability for your specific application. Below are the most critical points to evaluate:

1. Application & Intended Use

✔ Pharmaceuticals & Biotech: Requires precise temperature control, oil-free vacuum pumps, and compliance with FDA/GMP standards.
✔ Food & Beverage: Needs large chamber capacity, energy efficiency, and uniform drying.
✔ Lab & Research: Prefers compact, benchtop models with high control accuracy.
✔ Industrial & Large-Scale Production: Requires high-volume processing, automation, and durable construction.

2. Chamber Size & Capacity

✔ Determines how much product you can freeze dry per cycle.
✔ Small-scale lab systems: 1-10 liters.
✔ Food & pharmaceutical production: 100+ liters.
✔ Industrial-scale: 500-1000+ liters.

🔹 Consideration: Choose a size that balances processing needs with space and budget constraints.

3. Vacuum Pump Type & Performance

✔ Rotary Vane Pumps: Cost-effective but require oil maintenance.
✔ Dry Scroll/Screw Pumps: Oil-free, clean, and low-maintenance (best for food/pharma).
✔ Turbo Molecular Pumps: Used in high-end applications for ultra-low pressure.

🔹 Consideration: Choose a pump that reaches 10⁻¹ to 10⁻³ mbar vacuum for effective sublimation.

4. Cooling System & Condenser Capacity

✔ The cooling system must handle large moisture loads.
✔ Common cooling types:

• Air-cooled: Easier to install but less efficient.
• Water-cooled: More efficient for large-scale drying but needs water supply.
  ✔ Condenser Temperature: Should be -40°C to -85°C for optimal water vapor capture.

🔹 Consideration: Ensure the condenser can handle moisture output without overload.

5. Control System & Automation

✔ Modern freeze dryers offer touchscreen controls for temperature, pressure, and drying stages.
✔ Programmable drying cycles optimize efficiency.
✔ Data logging & remote monitoring enhance process tracking.

🔹 Consideration: Look for user-friendly software and automated safety features.
