What is Liquid Ring Vacuum Pumps [Benefits & Working Principle ]

Liquid ring vacuum pumps are a crucial component in many industrial processes. These pumps are designed to generate a vacuum using a rotating impeller to create a liquid ring inside the pump’s casing. What is a liquid ring pump, this liquid ring creates a seal between the pump’s suction and discharge sides, allowing for the movement of gases or liquids. The sealant is an essential component of the pump for proper functioning.

One of the benefits of using a liquid ring vacuum pump is its ability to handle condensable vapour and different types of fluids without affecting their performance. These pumps have a single functioning part, making them easy to maintain and repair. Additionally, they can be used for compression tasks or vacuum jobs, providing multiple functionalities using a single device.

When considering liquid ring vacuum pumps, it’s essential to ask suppliers for an entire performance curve of the pump used with its primary solvent. This is because the sealant’s vapour pressure directly affects the end vacuum and capacity of the pump. With their versatility and ease of use, liquid ring vacuum pumps are popular in the chemical, automotive, and water treatment industries. In this blog post, we will explore what is a liquid ring vacuum pump?, the various applications of liquid ring vacuum pumps in more detail, providing insight into their importance in the industry.

Table of Contents

What is Liquid Ring Vacuum Pumps?

VLRC series liquid ring vacuum pump - Vacculex

Liquid ring vacuum pumps are rotating positive displacement pumps commonly used as coarse vacuum pumps. They can obtain pressure and be used as a compressor, making them versatile equipment in various industrial applications. These pumps often provide process vacuum in electrical power, chemical processing, food and beverage, environmental, pharmaceuticals, marine and mining, oil and gas, pulp and paper, and textiles.

What is a liquid ring vacuum pump? The liquid ring vacuum pump is designed to operate without contacting parts. This makes it safe and reliable for handling dirty and hazardous gases. These pumps utilize water or other compatible liquids as sealants to maintain their operation. The liquid ring vacuum pump is available in single and dual-stage designs and can be configured as a compressor for greater adaptability.

The working principle of a liquid ring vacuum pump involves a ring of liquid formed by the centrifugal force generated by the rotating impeller. The impeller is connected to a shaft and is located eccentrically in a cylindrical casing. The liquid ring is created by filling the casing with the liquid to a level just below the impeller’s highest point. The rotation of the impeller creates a centrifugal force that pushes the liquid ring towards the casing’s inner walls, creating a series of pockets between the impeller’s vanes.

When the pocket reaches the suction port, gas is drawn into the pocket and compressed by the decreasing volume of the pocket as the impeller rotates. As the pocket moves towards the discharge port, the compressed gas is discharged into the discharge port. The impeller’s rotation removes the gas from the pocket, which is refilled with gas from the suction port. This process continues, creating a continuous flow of gas through the pump.

The benefits of liquid ring vacuum pumps include their ability to handle wet, dry, or a mixture of both gases. They are also capable of handling corrosive and hazardous gases safely. Their simple operation and low maintenance requirements make them cost-effective and reliable equipment for industrial applications. The liquid ring vacuum pump’s compatibility with various sealant liquids makes them adaptable to different processes, and their ability to operate as compressors add to their versatility.

In conclusion, liquid ring vacuum pumps are a versatile and reliable type of rotating positive displacement pump that can handle a range of gases and is widely used in various industries. Their simple design, low maintenance requirements, and compatibility with various sealant liquids make them cost-effective and reliable equipment for many industrial applications.

Liquid Ring Vacuum Pump Working Principle

The liquid ring vacuum pump is a type of vacuum pump that uses a liquid sealant, most commonly water, to create a vacuum. The pump comprises an eccentric impeller in the cylinder body or vacuum pump housing. Before starting the vacuum pump, the liquid sealant is filled to a minimum of ¼ of the cylinder volume. The impeller is placed between two port plates that act as the suction and discharge of the vacuum pump.

When the impeller starts to rotate, the liquid sealant moves outward due to the centrifugal force generated by the impeller’s rotation. As a result, a void space is created without liquid, and the liquid forms a ring shape. The portion between the impeller vane and the liquid is called the “impeller cell.”

Let us consider an impeller cell at the top of the vacuum pump, and the impeller rotates clockwise. Due to the impeller’s rotation, the liquid recedes from the impeller centre, creating a vacuum in the impeller cell. As a result, air, gas, or vapour is drawn from the vessel that needs to be maintained at a vacuum through the inlet port at the impeller’s sides.

As the impeller cell passes the inlet port and travels toward the discharge port, the sealant liquid is forced back toward the centre hub of the impeller, creating the compression step. The compression is at its highest when the impeller cell nears the discharge port. At this point, the gases and some of the liquid sealant are exhausted through the discharge port to the atmosphere.

What is liquid ring vacuum pump, the liquid sealant is highly turbulent. This is why some of the liquid sealants are discharged with the gases. The cycle is then repeated, with the impeller cell refilling with gas from the inlet port and the liquid sealant forming a new ring shape due to the centrifugal force.

The liquid ring vacuum pump’s working principle is based on the generation of a vacuum by using a liquid sealant. The impeller’s rotation creates a centrifugal force that separates the liquid sealant from the gas or vapour. The gas or vapour is then drawn into the impeller cell and compressed, while the liquid sealant is forced back towards the central hub of the impeller.

The liquid ring vacuum pump is widely used in various industries due to its ability to handle wet, dry or a mixture of both gases. They are also capable of handling corrosive and hazardous gases safely. Their simple operation and low maintenance requirements make them cost-effective and reliable equipment for industrial applications. The liquid ring vacuum pump’s compatibility with various sealant liquids makes them adaptable to different processes, and their ability to operate as compressors add to their versatility.

What is water ring vacuum pump The Water ring vacuum pump is a simple and reliable type of vacuum pump that is widely used in various industries. The impeller’s rotation generates a centrifugal force that separates the liquid sealant from the gas or vapour, creating a vacuum that can handle various gases. The liquid ring vacuum pump’s compatibility with different sealant liquids, its ability to safely handle corrosive and hazardous gases, and its simple operation make it a cost-effective and reliable equipment for many industrial applications.

The Benefits of Using Liquid Ring Vacuum Pumps

Liquid ring vacuum pumps are a versatile type of pump that offers a range of benefits over other types of pumps. One of the most significant advantages of these pumps is their ability to handle condensable vapour easily. This feature makes them ideal for use in applications that require handling different types of fluids without compromising the pump’s performance.

Another critical benefit of liquid ring vacuum pumps is their simplicity. These pumps have only one rotating or functioning part, making them easy to maintain and repair. Compared to other pumps with complicated designs, rebuilding or repairing a liquid ring vacuum pump is much easier and more cost-effective.

One of the most significant advantages of liquid ring vacuum pumps is their ability to be used for compression or vacuum jobs. This versatility means that they can be used for various applications at different stages or points, providing users with the benefit of multiple functionalities using a single device. Unlike other pumps generally used for pumping and vacuum creation operations, liquid ring vacuum pumps can also be used as gas compressors. This feature makes them handy devices for use in various applications.

Some typical applications of liquid ring vacuum pumps include electrical power, chemical, food and beverage processing, environmental, pharmaceutical, marine and mining, oil and gas, pulp and paper, and textiles. They are often used to handle corrosive or hazardous gases, making them popular in industries where safety is a top priority.

Overall, the benefits of using liquid ring vacuum pumps are numerous. They offer superior performance, versatility, and ease of maintenance, making them a popular choice in various industrial applications. Whether you need to handle corrosive gases or compress a gas, a liquid ring vacuum pump can be a valuable asset for your business.

Choose Our Liquid Ring Vacuum Pumps

VLRC series liquid ring vacuum pump
VLRC Series Liquid Ring Vacuum Pump

Typical Applications for Liquid Ring Vacuum Pumps by Industry

Liquid ring vacuum pumps are used in various industries due to their versatility and efficiency. Here are some typical applications for liquid ring vacuum pumps by industry:

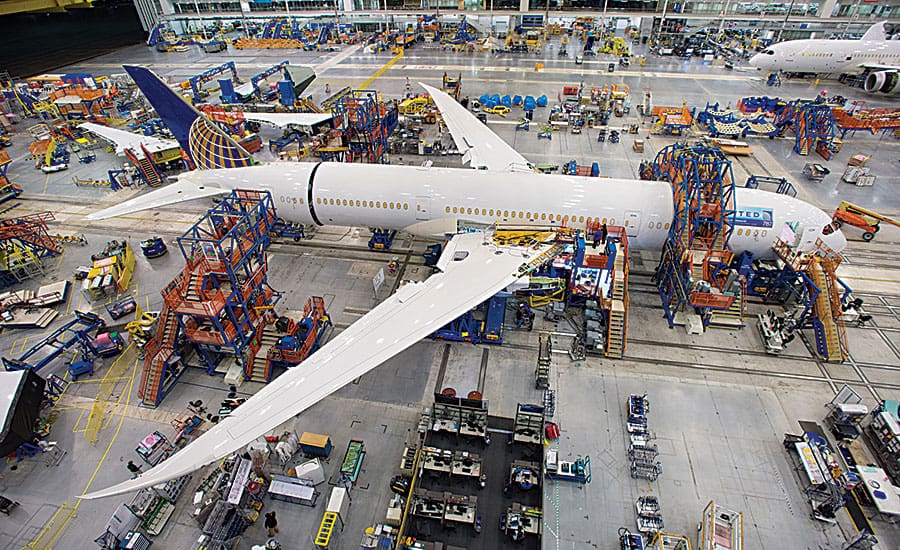

Liquid ring vacuum pumps are used in the aircraft industry for various purposes, such as carburettor testing, altitude chamber work, vacuum filling of fluids, and vacuum chucking for holding and handling parts.

Aircraft Industry - what is a liquid ring vacuum pump - Vacculex

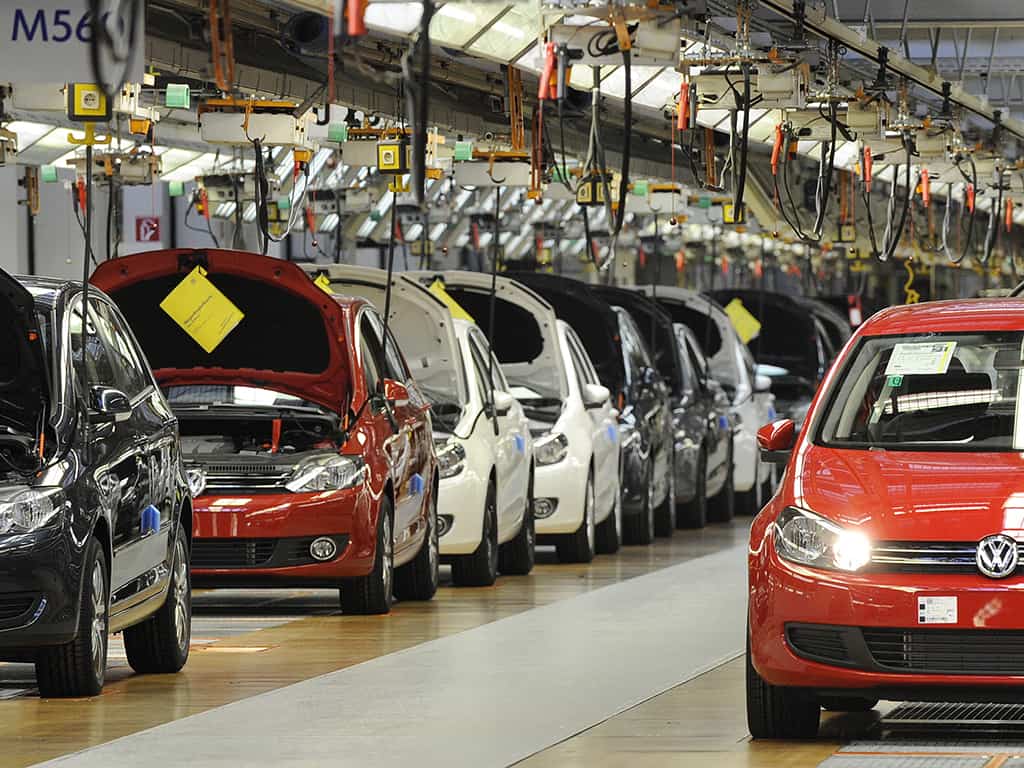

In the automobile industry, liquid ring vacuum pumps are used for engine testing, carburettor testing, and vacuum filling of power steering and brake fluid.

Automobile Industry - what is a liquid ring vacuum pump - Vacculex

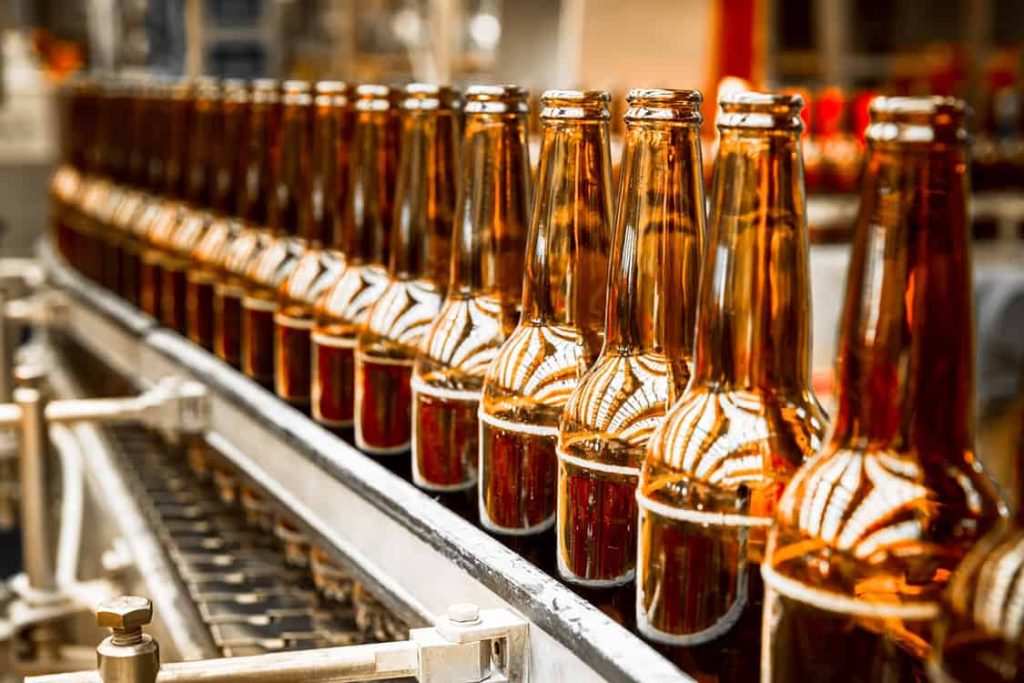

The brewing industry uses liquid ring vacuum pumps for air agitation of yeast and malt during fermentation using the pump as a compressor. It is also used for vacuum de-aeration of makeup water and bottle filling under a vacuum.

Brewing Industry - what is a liquid ring vacuum pump - Vacculex

In the chemical industry, liquid ring vacuum pumps are used for vacuum on chemical reactors and other processes. They are also used for vacuum de-aeration of acidic solutions, vacuum exhausting on resin kettles, vacuum filtration, distil synthetic resins and fatty acids, and de-aeration of solids and liquids.

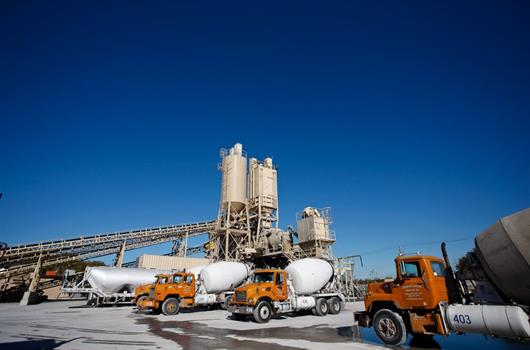

Liquid ring vacuum pumps are used in the concrete industry for vacuum lifting and de-aeration of pre-cast concrete slabs.

Concrete Industry - what is a liquid ring vacuum pump - Vacculex

The dairy industry uses liquid ring vacuum pumps for deodorization of milk under vacuum, flash cooling milk under vacuum, liquid ring compressors for agitation and aeration, and vacuum for automatic milking machines.

Dairy Products and Dairy Industry - what is a liquid ring vacuum pump - Vacculex

Gas Specialties

In the gas specialities industry, liquid ring vacuum pumps are used to vacuum dry oxygen cylinders and evacuate old gas cylinders using a vacuum before filling.

Gas Specialties - what is a liquid ring vacuum pump - Vacculex

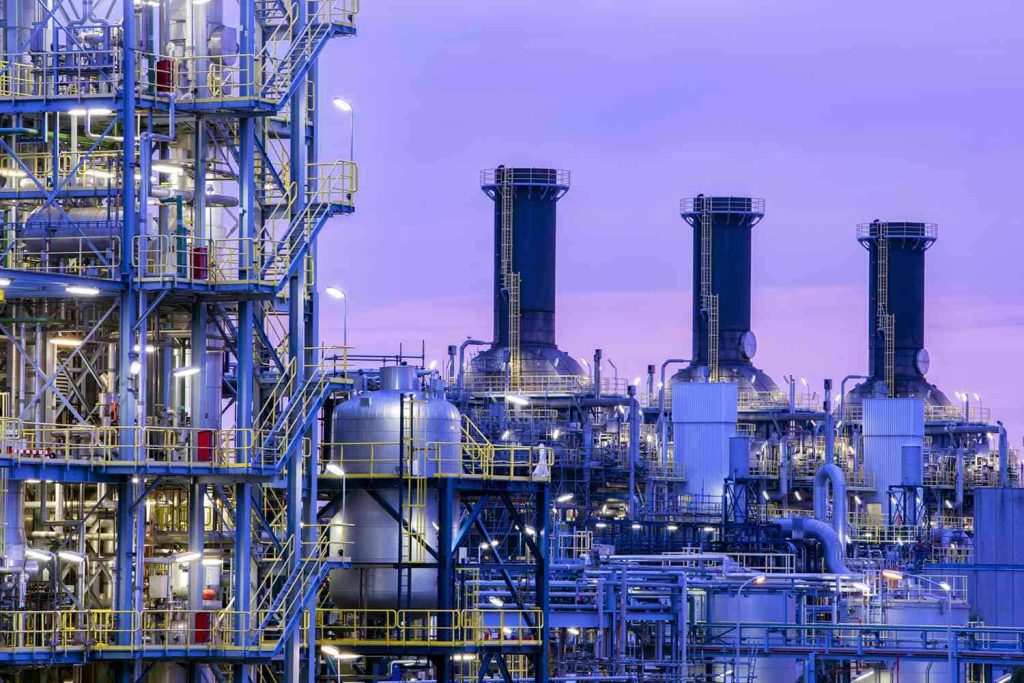

In the petroleum industry, liquid ring vacuum pumps are used for vapour recovery from storage tanks, vacuum priming of pumps, vacuum cleaning and filling of barrels, vacuum filtration for dewaxing, and flue gas compressor for carbon dioxide recovery (max allowable temp. is 100 degrees Fahrenheit) – if SO2 is present, a bronze pump is required.

Water Treatment Industry

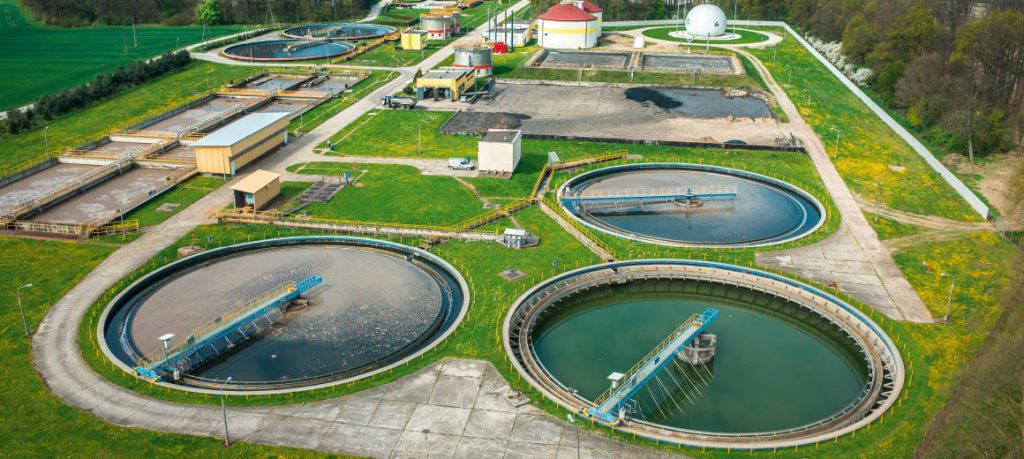

The water treatment industry uses liquid ring vacuum pumps for air agitation to oxidize bacteria, de-aeration to reduce corrosion within distribution systems and provide clean water, flue gas compression to recover carbon dioxide for use in water treating systems, vacuum de-aeration to remove available gases before treatment, and vacuum distilling seawater.

In conclusion, the liquid ring vacuum pump has been used in several industries thanks to its multiple functionalities and versatility. From chemical processing to concrete lifting, liquid ring vacuum pumps can be used for different applications and deliver high performance. They are also easy to maintain, and their rebuilding or repair is less complicated than other pumps.

Conclusion

The vapour pressure of the sealant used in a liquid ring vacuum pump plays a crucial role in determining the ultimate vacuum level the pump can achieve, and its capacity. The higher the vapour pressure of the sealant, the lower the achievable vacuum level and the lower the pump’s capacity. Hence, when choosing a vacuum system, it is essential to consider the vapour pressure of the sealant and its impact on the pump’s performance. It is advisable to ask for an entire performance curve of the liquid ring vacuum pump, specifically when used with its primary solvent, from potential suppliers to determine its suitability for your application. This information will help you select the appropriate vacuum pump that meets your vacuum level and capacity requirements.
