Mastering Vacuum Evaporation: Essential Guide
Vacuum evaporation technology gives us a good and controlled way to separate liquids from solids or other liquids. This process works by lowering the pressure in a closed system to below atmospheric pressure. When a vacuum is made, the boiling point of the liquid drops, which helps it evaporate at cooler temperatures. Usually, a heat exchanger is used to provide the heat needed for vaporization, making the process even more efficient.
The Science of Vacuum Evaporation
To understand vacuum evaporation, you need to know how pressure, temperature, and the boiling point of liquids work together. Liquids boil when their vapor pressure matches the pressure around them.
Simply put, when we heat a liquid, its molecules get more energy and begin to break free into vapor. If we lower the pressure above the liquid, it is easier for the energized molecules to escape. This change means we don’t need as much heat for boiling to happen.
What is Vacuum Evaporation?
Vacuum evaporation is a process that uses heat to separate liquids. It works by changing the vapor pressure and boiling point of the liquid. Basically, the process lowers the pressure around the liquid, which also lowers its boiling point. This is important in many industries where separating a solvent from a solution is necessary.
The key part of vacuum evaporation is the vacuum system. This system is built to keep the pressure much lower than normal atmospheric pressure. When the pressure falls, the boiling point of the liquid decreases. This allows the liquid to turn into vapor, or evaporate, at a much lower temperature than it usually would.
The success of vacuum evaporation relies on understanding the links between vapor pressure, boiling point, and the surrounding pressure. By carefully adjusting the pressure, people can control the evaporation process accurately.
The Role of Pressure in Vacuum Evaporation
Atmospheric pressure is the weight of air pushing down on the Earth’s surface. It is very important for deciding the boiling point of liquids. When at standard atmospheric pressure, liquids need a certain amount of heat energy to break this pressure and change into gas. This temperature is called the boiling point.
In vacuum evaporation, lowering the pressure inside a system allows liquids to boil at much lower temperatures. This happens because the vapor pressure needed to equal the lower pressure is reached at a cooler temperature. So, the liquid can turn into vapor using less heat, making it an energy-saving method.
This drop in boiling point, caused by reduced pressure, is key to the vacuum evaporation process. It helps to gently separate heat-sensitive materials and lowers the chance of damage from heat. The vapor that forms can then go through vapor deposition on a surface, creating thin films or coatings with specific qualities.
Vacuum Evaporation Process

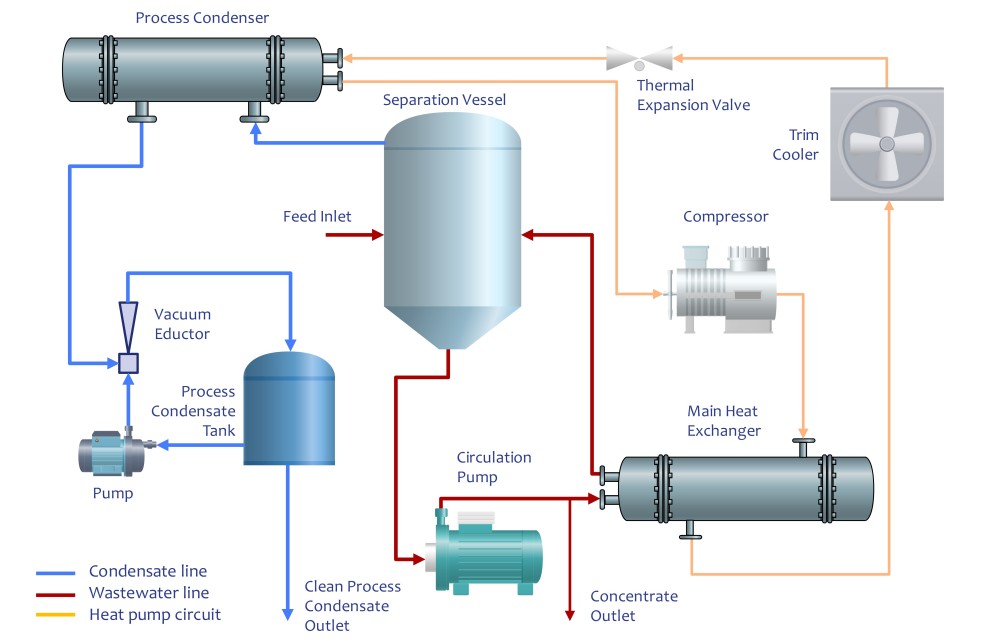

The vacuum evaporation process happens in clear steps. First, the liquid that will be evaporated goes into a chamber made to handle low pressures. Then, vacuum pumps lower the pressure in this chamber, which decreases the boiling point of the liquid.
A heat source, usually a heating mantle or hot water, adds heat to the liquid. This heat helps the liquid molecules break free from each other and turn into vapor. The vapor is then directed into a condenser. In the condenser, the vapor cools down, usually on a cold surface, and changes back into liquid. This liquid is then collected.
Working Principle of Vacuum Evaporation
Vacuum evaporation operates on the principle that reducing pressure decreases the boiling point of a liquid. This process involves three main stages:
- Creating a Vacuum Environment
A vacuum pump is used to remove air and reduce the pressure inside the evaporation chamber. Lowering the pressure allows the liquid to evaporate at a significantly lower temperature than under normal atmospheric conditions.
- Heat Transfer and Vaporization
Once the vacuum is established, heat is applied to the liquid, causing it to evaporate. The heat source can be steam, electricity, or hot water, depending on the application.
- Vapor Collection and Condensation
The evaporated liquid is collected and condensed back into a purified liquid or solid form. The efficiency of condensation plays a crucial role in maintaining system performance and energy efficiency.
Comparison: Vacuum Evaporation vs. Atmospheric Evaporation
Feature | Vacuum Evaporation | Atmospheric Evaporation |
Boiling Point | Lower | Higher |
Energy Efficiency | Higher (lower heat required) | Lower (more heat needed) |
Product Quality | Better for heat-sensitive materials | May degrade sensitive materials |
Processing Time | Faster | Slower |
System Equipment for Vacuum Evaporation
Vacuum evaporation systems consist of several key components essential for successful operation. A vacuum pump plays a crucial role in creating the required vacuum conditions for the process, enabling efficient evaporation. Heat exchangers help in managing temperature levels, crucial for the evaporation process. Additionally, condensers are vital for the conversion of the vaporized substances back into liquid form. Vacuum pans are utilized for collecting the condensed liquid product. Control systems are essential for monitoring and regulating various parameters during the evaporation process, ensuring optimal performance. Each piece of equipment in a vacuum evaporation system contributes to the overall efficiency and effectiveness of the process.

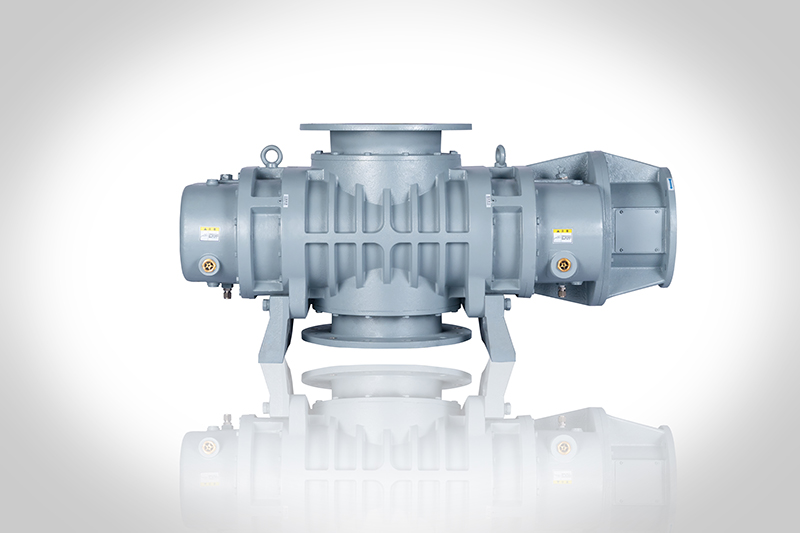

Vacuum Pumps
Vacuum pumps are vital for any vacuum system. They are key for starting and keeping the right pressure difference needed for vacuum evaporation. Their main job is to take out air and other gases that do not condense from a sealed chamber. By doing this, vacuum pumps create a low-pressure area that helps lower the boiling point of the liquid being processed.
Choosing the right vacuum pump for a specific task depends on a few important factors. These factors include how much vacuum you need, the size of the chamber, and the types of vapor being removed. Also, energy consumption is an important aspect to consider. Some types of pumps use less energy than others.
The success and lifespan of a vacuum system are closely related to the choice of a good vacuum pump. When you pick a pump that fits the needs of the evaporation process, it helps ensure better efficiency and job reliability.
Evaporators
In the world of vacuum evaporation systems, evaporators, or heaters, have an important job. They provide the heat energy needed to turn the liquid into vapor. They act as the main point of heat exchange. This helps transfer heat from the heat source to the liquid efficiently.
There are different types of evaporators available. Each type has its own strengths and weaknesses. Choosing the right one depends on several things. These include the volume and properties of the liquid, how fast you want it to evaporate, and the needs of your application.
The design of the evaporator greatly affects how well the vacuum evaporation process works. Important factors include the area that transfers heat and how the materials used match with the process fluids. These factors help achieve the best performance while reducing the risk of fouling or condensation inside the evaporator.
Condensers
Condensers are the last stop for vaporized liquid in a vacuum evaporation system. They work on heat exchange. This means they cool down the vapor and then help it turn back into liquid.
Usually, a cooling medium, like water or refrigerant, flows through the condenser. It takes heat away from the vapor. As the vapor cools, it loses energy and turns from gas back into liquid. This liquid clings to a cool surface inside the condenser.
How well this condensation process works affects how the whole vacuum evaporation system performs. A good condenser helps the vapor cool quickly. This stops any build-up of vapor in the system. To make the condenser work best, you have to think about things like how much cooling it needs, the area for heat transfer, and how it fits with the other liquids used in the process.
Control Systems
Control systems function as the brains of vacuum evaporation systems, orchestrating various process parameters to ensure optimal efficiency and product quality. These systems monitor and adjust key variables such as pressure, temperature, and flow rates, maintaining a stable and controlled environment for evaporation.
Modern control systems leverage advanced technologies such as programmable logic controllers (PLCs), sensors, and actuators to automate the vacuum evaporation process. These technologies enable precise control over process parameters, ensuring consistent results and minimizing the risk of human error.
In essence, a robust control system serves as the backbone of a reliable and efficient vacuum evaporation operation.
Advantages of Vacuum Evaporation
One of the key benefits of vacuum evaporation is its energy efficiency due to the lower temperatures required for the evaporation process. This leads to reduced energy consumption compared to traditional evaporation methods. Additionally, vacuum evaporation technology offers high concentration capabilities, enabling the processing of solutions with high levels of impurities or solutes. Moreover, the ability to operate under vacuum conditions minimizes the risk of impurity contamination and air emissions, making it a cleaner and more environmentally friendly option. Another advantage is the versatility of vacuum evaporation systems, which can handle a wide range of substrates and solvents, making them suitable for various industries and applications.
Applications of Vacuum Evaporation Technology
Often used in waste management, the applications of vacuum evaporation technology extend across various industries. From wastewater treatment, where it aids in achieving zero liquid discharge by concentrating contaminants, to the food and beverage sector for concentrating liquids and recovering by-products, the technology plays a crucial role. In pharmaceutical manufacturing, vacuum evaporation facilitates drug discovery by concentrating solutions without denaturing sensitive compounds. Its ability to operate at lower temperatures compared to traditional methods makes it ideal for heat-sensitive processes, ensuring minimal energy consumption. The technology’s versatility in handling high concentration streams, coupled with its efficiency in separating impurities, makes it a valuable asset in numerous industrial applications.

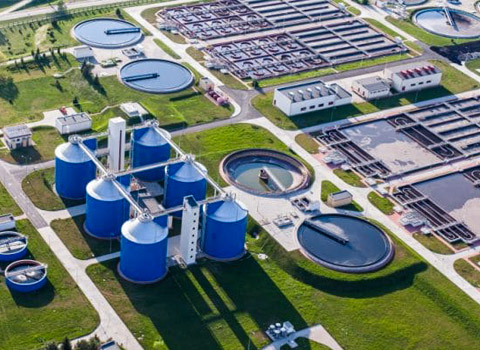

In Waste Water Treatment
Wastewater treatment facilities are using vacuum evaporation more and more. This method helps to concentrate wastewater and lower the amount of waste they need to get rid of. It is especially useful where the goal is zero liquid discharge (ZLD).
The process works by heating wastewater at a lower pressure. As the water turns to steam, it leaves behind concentrated contaminants. These contaminants can then be treated further or tossed away correctly. This step greatly reduces the amount of wastewater that needs to be thrown away, which helps cut costs and protects the environment.
Also, vacuum evaporation is good at handling many types of wastewater contaminants. This includes salts, heavy metals, and other dissolved solids. Its flexibility and efficiency make it a great choice for different industrial wastewater treatment needs.
In the Food and Beverage Industry
Vacuum evaporation is very important in the food and beverage industry. It helps remove water or other solvents from heat-sensitive foods. It does this without hurting their quality, taste, or nutrition.
A main use of vacuum evaporation is in making fruit juices stronger. By taking out some water, it raises the levels of sugars and other solids. This makes the flavor much stronger. This method is also used for making tomato paste, condensed milk, and other concentrated foods.
In addition, vacuum evaporation is great for drying. It is especially used for sensitive ingredients like fruits and vegetables. Drying in a vacuum stops oxidation and reduces the loss of important aroma compounds. This leads to higher quality dried foods.
In Pharmaceutical Manufacturing
The pharmaceutical industry uses vacuum evaporation a lot. This is especially true during drug discovery, development, and manufacturing. It works well because it can run at low temperatures. This feature helps it handle delicate pharmaceutical compounds without damaging them.
Vacuum evaporation is also used to purify substances. It separates solvents and unwanted materials from the active pharmaceutical ingredients (APIs) we want. This purification helps create high-purity pharmaceutical products, which are very important for patient safety and effectiveness.
Moreover, vacuum evaporation is essential in crystallization processes. This technique helps to isolate and purify solid pharmaceutical compounds. By carefully managing how fast it evaporates and the temperature, manufacturers can cause crystallization. This way, they can get APIs with the right size and purity.
Why Choose Vacculex Vacuum Pumps for Vacuum Evaporation?
Vacculex is a leading manufacturer of high-performance vacuum pumps designed for industrial applications. Here’s why Vacculex vacuum pumps are the best choice for vacuum evaporation systems:
Optimized for Industrial Use – Engineered for high vacuum stability and efficiency.
Low Maintenance & High Durability – Designed for continuous operation with minimal downtime.
Energy-Saving Technology – Reduces power consumption while maintaining optimal vacuum conditions.
Custom Solutions Available – Tailored vacuum pump systems to meet specific industry requirements.
With years of industry experience, Vacculex provides reliable, high-quality vacuum solutions that enhance the efficiency of vacuum evaporation systems.
Conclusion
Understanding the basics of vacuum evaporation is very important for different industries. These include wastewater treatment, food and beverage, and making pharmaceuticals. Vacuum evaporation is a good way to concentrate and purify liquids. It uses advanced equipment, like vacuum pumps, evaporators, and condensers, to work well. If you choose a reliable vacuum pump, like Vacculex, it can make the evaporation process better. If you want to improve your operations using vacuum evaporation, think about buying good quality equipment. This can help you get better results. For more information or quotes on commercial use, contact us today.
Frequently Asked Questions
How does vacuum evaporation differ from traditional evaporation methods?
Unlike regular evaporation at atmospheric pressure, vacuum evaporation lowers the pressure above the liquid. By reducing the pressure, the boiling point goes down. This means it needs less heating and helps cut down on energy consumption.
Can vacuum evaporation be used for all types of liquids?
Vacuum evaporation does not work well for all liquids. It is not the best choice for thick liquids or those that have many solutes, contaminants, or impurities. These factors can impact the evaporation process and the purity of the product.
What are the energy requirements for vacuum evaporation?
Energy consumption (kWh) changes based on things like volume, the concentration you want, and the heat source you use. Methods like mechanical vapor recompression and cogeneration can help make energy use much more efficient.
How does vacuum evaporation impact product quality?
Vacuum evaporation helps improve product quality. It does this by reducing heat. This reduction stops products from breaking down. It dries items well without losing their purity. As a result, the products have better quality and fewer impurities.
