Master the Positive Displacement Pump Working Principle
Table of Contents
A positive displacement pump is a strong machine used to move liquids. It works by trapping a fixed amount of liquid and then pushing it out, creating a steady flow. This is different from centrifugal pumps, which use centrifugal force to make flow happen. Displacement pumps are great when you need a constant flow rate, even if pressure changes. Because of this, they are important for dealing with thick liquids, precise measurements, and high-pressure tasks in many different industries.
The Positive Displacement Pump Working Principle
Positive displacement pumps operate based on the principle of trapping a fixed volume of fluid within the pumping chamber and then discharging it. Unlike centrifugal pumps, these pumps produce a constant flow, making them ideal for handling viscous or sensitive fluids. The pumping action is achieved through the movement of internal or external gears, lobes, screws, or pistons, depending on the type of pump. By maintaining a steady flow and generating high pressure, positive displacement pumps are widely used in various industrial applications, including those involving abrasive or hazardous fluids. Understanding the working principle of these pumps is crucial for ensuring efficient and reliable fluid transportation.
Types of Positive Displacement Pumps Explained
Positive displacement pumps come in various types with unique working mechanisms. Screw pumps utilize rotating screws to move fluids smoothly. Gear pumps employ interlocking gears to displace liquids consistently. Diaphragm pumps use a flexible diaphragm to create a pumping action for sensitive fluids. Piston pumps operate by the reciprocating movement of a piston inside a chamber, suitable for high-pressure applications. Each type caters to specific industrial needs, from handling viscous liquids to abrasive fluids. Understanding the distinctions between these pump variations is crucial for selecting the ideal one for a particular application, ensuring efficient and reliable fluid transfer processes.
Screw Pumps

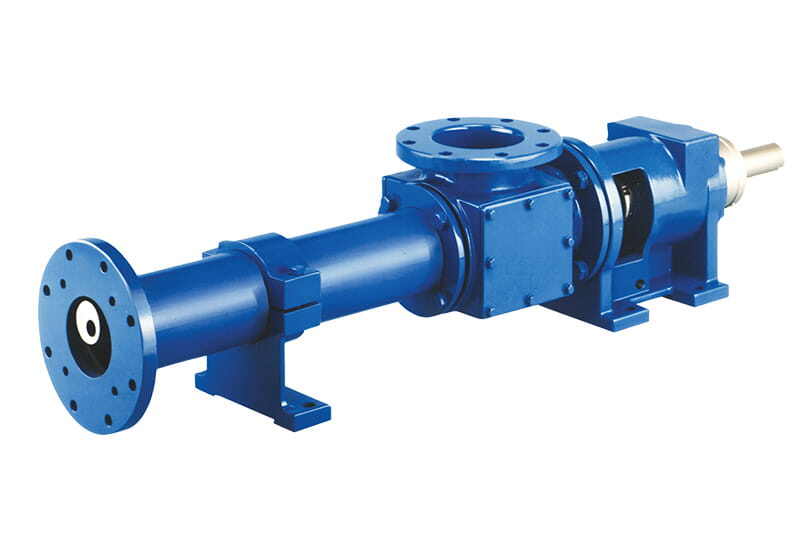

Screw pumps are a kind of rotary positive displacement pump. They use one or more screws to move fluids. The pump works by trapping fluid between the screw threads and a stationary casing. As the screw rotates, it moves the fluid along its axis. This makes the movement smooth and eliminates turbulence.
These pumps are known for their efficiency and can handle high viscosity fluids. Because of this, they are used in many areas like oil and gas production, transferring fuel, and in various industrial processes. Their design allows them to manage fluids with different thicknesses, from light oils to thick polymers.
Screw pumps have some great benefits. They can provide high flow rates and operate quietly. They can also handle fluids that contain solids. This makes them very suitable for tough tasks where other pump types may have trouble.
Gear Pumps
Gear pumps are a popular type of rotary positive displacement pump. They are simple and durable. They also work well with thick fluids. A gear pump has two gears, one internal and one external. These gears turn inside a tightly fitting case.
When the gears turn, they create spaces on the inlet side. This draws fluid into the pump. The fluid gets trapped between the gear teeth and the housing. It moves along the outer edges and gets pushed out through the discharge port as the gears mesh together. This process keeps the flow rate steady and matches the pump’s speed.
Gear pumps are great for handling fluids like oils, which helps with lubrication. They are important in lubrication systems, fuel transfer, and hydraulic systems. You can also find them in chemical and food processing, and in other industries where a steady, smooth flow is essential.
Diaphragm Pumps

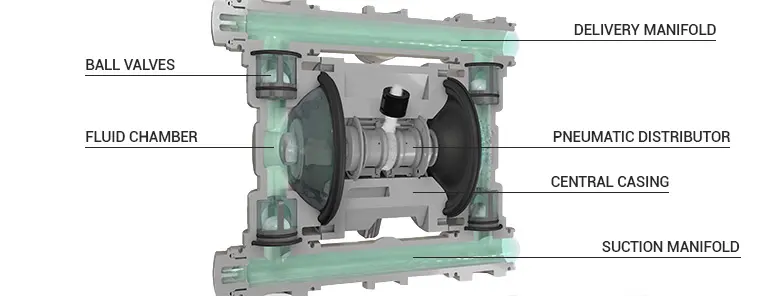

Diaphragm pumps, or membrane pumps, work by using a moving flexible diaphragm inside a pump chamber. These pumps are valued for their ability to handle many types of fluids. This includes fluids that are corrosive, thick, or have solid particles in them.
When the diaphragm pulls back, it makes a vacuum in the pump chamber, allowing fluid to enter through the inlet valve. When the diaphragm pushes forward, it pressurizes the fluid and opens the outlet valve to send the fluid out. This back-and-forth movement of the diaphragm creates a steady pumping action.
Diaphragm pumps are very useful when operations need to be leak-free. This feature makes them perfect for dealing with unsafe or corrosive fluids. Their design keeps the pumped fluid separate from the pump’s mechanical parts. This limits the risk of contamination and corrosion.
Piston Pumps
Piston pumps are a kind of positive displacement pump. They work by having a piston move inside a cylinder to push fluid. These pumps are efficient and can create a lot of pressure. They are good at moving fluids even when there is high resistance.
When the piston moves backward, it makes a vacuum in the cylinder. This vacuum pulls fluid in through the inlet valve. When the piston moves forward, it compresses the fluid. This increases the pressure and pushes the fluid out through the discharge valve.
Piston pumps come in different types. There are single-acting pumps and double-acting pumps. Single-acting pumps release fluid with one stroke of the piston. Double-acting pumps release fluid on both strokes, which means they create a more steady flow. You will often find piston pumps in high-pressure cleaning, hydraulic systems, and oil and gas production.
Advantages of Using Positive Displacement Pumps
Positive displacement pumps offer several advantages in industrial applications. They provide a consistent flow rate as they displace a fixed volume of fluid with each cycle. This makes them ideal for handling a wide range of fluids, including low viscosity liquids, viscous fluids, and sensitive or abrasive substances. The ability to maintain a constant flow, regardless of variations in discharge pressure, is a key benefit. Furthermore, positive displacement pumps can operate at lower speeds and handle high-pressure tasks efficiently. Their robust design with fewer moving parts enhances reliability and minimizes maintenance needs, making them suitable for demanding and hazardous fluid transfer operations.
Reliable and Consistent Performance
One of the biggest benefits of positive displacement pumps is that they work reliably and consistently. These pumps deliver a steady flow rate, no matter how the discharge pressure changes. This quality makes them great for jobs where careful measuring or dosing is important, like in chemical processing or making food and drinks.
The steady flow rate comes from how positive displacement pumps work. They move a fixed volume of fluid with each stroke or rotation. Unlike centrifugal pumps, which can have different flow rates depending on system pressure, positive displacement pumps keep the flow steady. This helps in keeping things precise and stable.
Moreover, the strong build of the pump casing and the use of good materials add to their reliability. This strong construction reduces downtime and keeps performance consistent. As a result, they are a trusted choice for important industrial tasks.
High-Pressure Handling
Positive displacement pumps are known for their ability to create and handle high pressure. This makes them very useful in situations where high discharge pressure is needed. They can move thick liquids well, even through long pipes or when facing a lot of resistance. Industries like oil and gas, chemical processing, and water jet cutting depend on this ability.
These pumps work based on a principle called positive displacement. In this process, the liquid is trapped and compressed in the pump chamber. After that, it is pushed out, creating high pressure. This helps the pump beat system resistance and keep a steady flow.
To keep everything safe when dealing with high pressure, these pumps have features like relief valves. These valves serve as safety devices. They open up automatically when the pressure is too high and help prevent damage to the pump or the system.
Precise Flow Control
Precision flow control is a key benefit of positive displacement pumps. They provide a steady and reliable flow rate. This makes them perfect for tasks that need exact metering or dosing. In industries such as pharmaceuticals, food and beverage, and chemical processing, where handling fluids accurately is very important, these pumps are essential.
The accurate flow control comes from the clear link between the pump’s speed and the flow rate. By changing the pump’s speed, the flow rate can be managed to fit specific needs. Also, tools like variable frequency drives can improve flow control even more. They allow for real-time changes based on what the process needs.
The design of the inlet valve is very important for precise flow. These valves are made to ensure that the pump chamber is fully filled with each stroke or rotation. This setup helps to maximize efficiency and flow accuracy.
Low Maintenance and Durability
Positive displacement pumps are known to last a long time and need little care if you choose and maintain them well. They are built strong, often with high-quality materials and careful design, which helps reduce wear and tear. Unlike centrifugal pumps that work at high speeds, positive displacement pumps usually operate at lower speeds. This means there is less stress on their parts, which helps them last longer.
Many positive displacement pumps are simply designed. They have fewer moving parts than other pumps, so there are fewer things that can break. This means you will not need to repair or replace them as often.
To keep these pumps working well, regular care is important. Checking seals and lubricating parts are both key to making sure they last. Following recommended maintenance schedules and quickly fixing any issues can really help extend the life of your positive displacement pumps.
Applications of Positive Displacement Pumps
Positive displacement pumps find applications in a wide range of industries due to their ability to handle various fluids effectively. They are commonly used in demanding applications such as food processing, chemical processing, oil and gas refining, and pharmaceutical production. Positive displacement pumps excel in scenarios where a consistent flow rate is required, especially for pumping high viscosity fluids, sensitive biological fluids, abrasive liquids, and hazardous chemicals. These pumps are preferred for their reliability and precise pumping action, making them suitable for transferring fluids in industries where maintaining a steady flow is critical. The versatility of positive displacement pumps makes them indispensable in handling a diverse range of fluids across different industrial settings.
Chemical and Petrochemical Industries
Positive displacement pumps are very important in the chemical and petrochemical industries. They can move many types of fluids. This includes harmful chemicals, thick polymers, and dangerous liquids. They keep a steady flow rate, no matter the pressure changes. This quality makes them perfect for key tasks like chemical dosing, blending, and transfer.
These pumps are built strong and can work well with different materials. This means they can handle strong and corrosive chemicals without losing power. In petrochemical refining, they efficiently and safely move crude oil, refined products, and other byproducts.
Also, these pumps can manage high pressure. This feature makes them great for pumping fluids through long pipelines or against high resistance. This helps with the effective transportation and processing in these industries.
Food and Beverage Processing
In the food and beverage processing industry, keeping things clean and safe is very important. Positive displacement pumps are popular because they are well-designed for sanitation and gently handle sensitive fluids. They are great for moving delicate ingredients like fruit purees, dairy items, and thick sauces without changing their texture or quality.
These pumps come with clean-in-place (CIP) features, making it easy to clean and sterilize them. They meet high hygiene standards. Their ability to control flow precisely helps in accurately adding ingredients and sticking to recipes, which keeps products consistent.
Also, these pumps can handle fluids of different thicknesses. This makes them useful for many tasks, including moving syrups, concentrates, and for bottling and packaging.
Oil and Gas
The oil and gas industry depends a lot on positive displacement pumps. These pumps handle high pressures, rough fluids, and extreme temperatures. These conditions are common during exploration and production.
In upstream applications, these pumps move drilling mud, inject chemicals into wells, and extract crude oil. In the midstream phase, they transport oil and gas through pipelines. In downstream applications, they manage refined products and petrochemicals.
Rotary positive displacement pumps, especially screw pumps, are popular in oil and gas. They can handle high viscosity fluids, rough materials, and gases. Their reliability and good performance in tough conditions help keep oil and gas operations efficient and safe.
Pharmaceuticals and Cosmetics
Precision, cleanliness, and the ability to manage sensitive fluids are very important in the pharmaceutical and cosmetics industries. Positive displacement pumps are great for these needs. They are good for many jobs, like making medications and filling and packing cosmetic items.
In making pharmaceutical products, these pumps help with things like sterile filling of liquids, moving active ingredients, and managing thick ointments. They provide accurate dosing, which keeps the product consistent and meets strict industry rules.
In the same way, in cosmetics production, they work with gentle ingredients. This ensures precise mixing and keeps the product safe. Their easy-to-clean design makes them ideal for making lotions, creams, and other personal care items.
Water and Wastewater Treatment
Water and wastewater treatment facilities use positive displacement pumps a lot. These pumps help move liquids that can vary in thickness and type. They play a vital role in managing sludge, adding chemicals, and keeping a steady flow of water during treatment.
In wastewater treatment, positive displacement pumps move raw sewage. They also transfer sludge between different treatment stages and add flocculants and coagulants. These pumps can handle solids and thick fluids, which makes them perfect for these tough tasks.
Moreover, they have good flow control for adding chemicals. This helps make sure that the treatment is accurate and removes harmful substances efficiently. Overall, positive displacement pumps are key for the smooth and trustworthy operation of water and wastewater treatment plants. They help in providing safe and clean water.
Choosing the Right Positive Displacement Pump
Choosing the right positive displacement pump for your needs is very important. It helps to keep performance high, efficiency good, and the pump lasts longer. Think about things like the flow rate you need, the kind of fluid you are pumping, the discharge pressure, and any specific needs for the application.
It is a good idea to talk to pump manufacturers. They can give you expert advice based on your unique situation. By looking closely at these factors, companies can buy a positive displacement pump that fits their needs well and works reliably.
Factors to Consider: Flow Rate, Pressure, Fluid Type, and Viscosity
Factor | Description |
Flow Rate | The volume of fluid pumped per unit of time is crucial in determining the pump’s capacity to meet process demands. |
Pressure | The discharge pressure required to overcome system resistance and deliver the fluid to the intended destination. |
Fluid Type | The chemical compatibility of the pump’s materials with the fluid is crucial to prevent corrosion or damage. |
Viscosity | The fluid’s resistance to flow is a significant factor, as viscous liquids require pumps capable of handling thicker fluids. |
Understanding the fluid’s properties, including its viscosity, temperature, and potential for abrasion, is essential. Selecting a pump with appropriate material and seal compatibility ensures longevity and prevents premature wear. Additionally, considering the future needs of the application, such as potential increases in flow rate or pressure, can guide the selection of a pump with sufficient capacity for future expansion or changes in operation.
Applications and Suitability
Different types of positive displacement pumps shine in certain situations because of their special designs and how they work. Knowing these differences is important for picking the right pump. For example, gear pumps are simple and handling thick liquids well. They work great for transferring oil and in hydraulic systems.
Screw pumps are chosen a lot in wastewater treatment and food processing. They have high flow rates and can handle solid materials. Diaphragm pumps are famous for not leaking and working with harmful fluids. They are often used in chemical processing and pharmaceuticals.
Piston pumps can create high pressures. They are usually seen in hydraulic systems and in oil and gas extraction. They are good for applications that need a lot of power. Picking the right pump for the job helps it work well and last longer.
Maintenance and Efficiency Considerations
Maintenance and efficiency are key points when picking and using a positive displacement pump. Regular maintenance is very important to keep the pump working well and last longer. You should do tasks like lubricating it, checking the seals and valves, and looking for any signs of damage.
Efficiency matters a lot, especially when the pump runs all the time or needs to move a lot of fluid quickly. Choosing a pump with high efficiency can save energy over time. Factors that affect efficiency are the pump’s design, the type of fluid it moves, and how it is used.
It’s a good idea to select pumps that have spare parts available and think about how easy they are to maintain. Also, how you install and run the pump is important for getting the best efficiency and reducing wear. Using the pump within its set pressure and flow rate keeps it lasting longer and helps avoid putting too much strain on its parts.
Choose Vacculex, Choose A Reliable Dry Screw Vacuum Pump Manufacturer
When you need precision, reliability, and good performance, picking the right dry screw vacuum pump manufacturer is very important. If you want a top-notch partner, Vacculex is a name you can trust in vacuum technology. They are dedicated to offering advanced dry screw vacuum solutions and have built a solid reputation as a reliable provider in many industries.
Our dry screw vacuum pumps are carefully designed to provide great performance. They have high vacuum levels, fast pumping speeds, and long-lasting durability. Since there is no lubrication in the pumping chamber, they operate cleanly. This makes them perfect for sensitive applications where contamination could be a problem.
Conclusion
In conclusion, understanding how a positive displacement pump works is important for many industries. This knowledge helps in getting steady performance, managing flow well, and handling high pressure. Positive displacement pumps are low maintenance and very durable. This makes them great for use in industries like chemical, food processing, oil and gas, pharmaceuticals, and water treatment. When picking a positive displacement pump, think about factors such as flow rate, pressure, fluid type, and viscosity. This will help ensure it works well for your needs. For a trustworthy dry screw vacuum pump manufacturer, consider Vacculex. They can effectively meet your industrial needs.
