Optimize Liquid Ring Vacuum Pump Efficiency: Ultimate Guide
Liquid ring vacuum pumps play a crucial role in various industries where creating vacuum conditions is essential. These pumps offer distinct advantages in terms of efficiency and versatility. Understanding the mechanics and components of liquid ring pumps is key to maximizing their performance. Factors such as operating conditions, material selection, and design greatly impact the efficiency of these pumps. By maintaining the right working fluid temperature and optimizing components like impeller blades, users can enhance the overall efficiency of their liquid ring vacuum pump systems. In this guide, we will delve into the intricacies of liquid ring pump efficiency and explore ways to improve performance for different applications.
Understanding Liquid Ring Vacuum Pumps
Liquid ring vacuum pumps utilize a liquid as the working fluid to create the compression needed for suction. The pump’s efficiency is highly dependent on factors like the differential pressure, power consumption, and fluid temperature. The impeller blades rotating within the liquid ring create centrifugal force, aiding in the compression process. By maintaining optimal fluid temperature and proper sealant, these pumps ensure high efficiency and low maintenance requirements. Understanding the core components and their functions, such as the inlet port, discharge, and bearings, provides insight into how these pumps operate within a vacuum system. Additionally, familiarity with the vapor pressure and compression mechanisms is crucial for maximizing liquid ring pump performance.
The Basic Mechanics of Liquid Ring Pumps

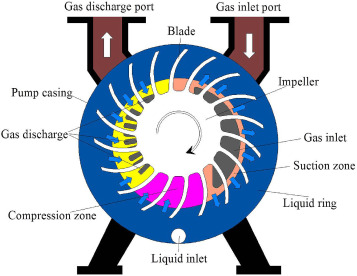

Liquid ring pumps operate on the principle of a rotating impeller creating a liquid ring within the pump chamber. This liquid ring serves as a sealant, enabling compression as the impeller blades push the gas towards the discharge port. The centrifugal force generated by the rotating impeller blades results in the formation of this liquid ring. As the impeller rotates, the gas is compressed, leading to increased pressure and subsequent discharge. The inlet port allows the gas to enter the pump, where it is compressed and discharged. Understanding these fundamental mechanics is crucial in optimizing liquid ring vacuum pump efficiency.
Core Components and Their Functions
- Rotor:The rotor is the main part of the pump. It has an impeller on a shaft. When the motor turns the impeller, it makes the liquid ring move, which creates a vacuum.
- Shaft:This important part connects the rotor to the drive. It sits on bearings to allow the rotor to turn smoothly. It is important to keep the shaft and bearings aligned and well-lubricated. This helps the pump last longer and work better.
- Casing:The casing holds the rotor and the liquid ring. It keeps everything in place for the pumping to happen. The casing has suction and discharge ports for gases or vapors to enter and exit. Its shape and design help make the liquid ring work well for creating a strong vacuum.
Factors Influencing Liquid Ring Pump Efficiency
Operating conditions, material selection, design, and construction significantly impact liquid ring vacuum pump efficiency. The working fluid temperature, differential pressure, and fluid properties play a crucial role in determining pump performance. Optimal vacuum levels are achieved by considering the energy efficiency of the system. Properly designed impeller blades and efficient sealing mechanisms reduce power consumption. Additionally, minimizing leakage, friction, and resistance within the pump enhances overall efficiency. The choice of rotor material, bearings, and shaft design also contribute to maintaining high efficiency levels. By carefully analyzing these factors, the efficiency of liquid ring pumps can be maximized, ensuring smooth operation and longevity.
Operating Conditions
Liquid ring vacuum pump efficiency is greatly influenced by various operating conditions. The working fluid temperature plays a crucial role in maintaining optimal performance, affecting the vapor pressure and energy efficiency. Additionally, factors like differential pressure, suction pressure, and the inlet port design impact the pump’s overall efficiency. Proper management of these parameters ensures the pump operates at peak efficiency levels, minimizing power consumption and maximizing productivity. Understanding the interplay between these conditions is essential for maintaining high efficiency in liquid ring vacuum pumps. Regular monitoring and adjustment of these operating variables can significantly enhance the pump’s performance and longevity.
Material Selection
The materials we use to build a liquid ring pump are very important for how well it works and how long it lasts. When choosing these materials, we need to think carefully about things like how well they can handle the liquids being pumped and the temperatures they will face.
It is important to pick materials that are highly resistant to corrosion. If the fluids are corrosive, they can damage the pump parts, which can lead to leaks and a drop in efficiency. For example, when dealing with acidic solutions, using corrosion-resistant materials like stainless steel for the parts that are in contact with the liquid is a must.
Also, the toughness of the materials is very important when the pump is under a lot of stress. We need to consider how well they resist wear and how strong they are, especially when handling slurries or other abrasive materials. The life of the pump and its ability to stay efficient depend on choosing materials that can handle the challenges of the job.
Cooling System
In any system where energy is changed, managing heat is very important. Liquid ring pumps need this too. A good cooling system is key to keeping these pumps working well and lasting longer. The main job of the cooling system is to control the temperature of the working fluid. It stops the temperature from getting too high.
When the pump works to compress gases and vapors, it creates heat. If this heat is not removed, the temperature of the working fluid goes up. High fluid temperatures can make the pump work less efficiently and may hurt its parts. The cooling system helps a lot. It allows the heat to move away from the working fluid to something cooler, like air or water.
Keeping the working fluid at a good temperature range helps the pump be more energy efficient and last longer. This shows why having a well-sized and cared-for cooling system is so important for liquid ring pump performance.
Design and Construction
The efficiency of a liquid ring pump depends on its smart design and careful construction. A well-built pump has smooth paths for fluid flow, less internal loss, and strong parts. The impeller, which is the main part of the pump, affects how the liquid ring forms. This has a direct effect on how efficient the pump is.
Also, the shape of the pump casing and the gaps inside are key to reducing pressure drops and helping the fluid move smoothly. Quality in construction is essential. Using precise tools and keeping tight spaces between moving parts reduces leakage and helps the pump work better.
Choosing the right materials based on things like temperature, pressure, and what is pumped is really important too. This choice affects how long the pump lasts, how well it works, and how much it resists damage. This all has a big impact on its long-term efficiency and reliability. Click here to view the different models of liquid ring vacuum pumps we offer.
Maintenance
Liquid ring vacuum pumps are known for being strong and needing little maintenance, but regular check-ups are still very important. This care helps them work well and last a long time. If you ignore maintenance, you risk trouble that could have been avoided.
Doing simple checks can stop future issues. Check the service liquid to make sure it’s clean and not broken down. Also, look for leaks and make sure seals are working well. It’s key to watch how much the pump shakes and its noise while running. These can show if there are any problems starting.
Lubricating bearings and moving parts on time is very important too. Friction can slow things down. Proper lubrication helps reduce friction, keeping everything running smoothly and preventing damage to important parts.
Vacuum Level
The vacuum level of a liquid ring pump is very important for its performance. It depends on many factors like design and how it is used. Knowing these factors is important to make sure the pump works well with the vacuum system. The shape of the impeller and the casing are key in deciding how deep the vacuum can go.
The size of the inlet port and the layout of the pipes connecting the pump to the vacuum chamber also affect the vacuum level. Other operational factors include the type of service liquid and its temperature, along with any non-condensable gases in the system.
For example, if the service liquid gets too hot, it can make the vapor pressure rise. This rise can stop the pump from reaching a higher vacuum. Because of this, it is essential to adjust both design and operating factors. This ensures the pump reaches the right vacuum level for different uses.
Enhancing Efficiency through Maintenance and Troubleshooting
Maintaining and fixing your liquid ring vacuum pump can be simple. By being proactive and recognizing common warning signs, you can help it last long and work really well.
Think of it as a team effort. When you take care of the pump, it helps support your work. By following a solid maintenance plan and staying alert to issues, you are helping the pump run efficiently. This, in turn, makes sure your operations run smoothly.
Routine Maintenance Best Practices
A good maintenance schedule is key to a liquid ring pump’s long life and steady performance. Doing regular maintenance helps avoid sudden break downs and expensive fixes. It also helps make the pump run better and saves energy.
Here are some important maintenance tips to keep your pump in good shape:
- Check the Service Liquid Often:The service liquid is essential for your pump. Its quality affects how well the pump works. Look for any dirt, debris, or changes in color and smell. These could mean the liquid is not good anymore.
- Watch Operating Temperatures and Pressures:Like a doctor checks a patient’s vital signs, keep an eye on your pump’s temperatures and pressures. If these numbers change from their normal levels, it might mean there are issues that need fixing.
- Keep It Lubricated:Friction can lower efficiency and cause wear and tear. Following the manufacturer’s advice on lubrication for bearings, seals, and moving parts is very important. This helps keep the pump running smoothly and increases its lifespan.
Common Issues and How to Solve Them
Even when you take care of your liquid ring pumps, they can sometimes have problems. Knowing what common issues come up and how to fix them can help save you time and money.
A common problem is a drop in vacuum level. This can happen for different reasons, like air leaks, worn-out seals, or low service liquid levels. You can find leaks, change worn seals, and check that the service liquid is at the right level to fix this issue.
Another problem could be too much vibration or noise while the pump is working. This might mean there are issues with the impeller, bearings, or rotor balance. To solve this, check the impeller for damage, inspect the bearings for wear, and ensure the rotor is balanced. Also, cavitation happens when vapor bubbles form in the liquid ring. This can cause noise, lower efficiency, and damage. You can stop cavitation by adjusting the pump’s settings or using a service liquid with a higher vapor pressure.
Check Out Vacculex's Vacuum Pumps To Improve Efficiency For Your Projects
Vacculex is making a mark in the world focused on sustainability and great operations. They are known for their innovative vacuum technology. Their liquid ring vacuum pumps offer strong design, high efficiency, and amazing performance. This shows their dedication to providing the best solutions for many industrial needs.
Vacculex’s pumps really shine on their own. You can see how quality engineering improves your operations.
Feature | Vacculex Advantage |
Efficiency | Built for top performance, these pumps lower energy use and cut your costs. |
Durability | They are made to last in tough industrial settings, so they have a long life and less downtime. |
Customization | Every job is different. That’s why Vacculex creates special solutions just for your needs. |
Conclusion
In summary, it is important to understand how liquid ring pumps work to improve industrial operations. Knowing how they function, their main parts, and what affects their efficiency can help you improve performance and extend the life of your equipment. Proper maintenance and fixing problems are key. Vacculex provides advanced vacuum pump solutions that can help make your projects more efficient. If you follow best practices and fix common problems early, it will help ensure your pumps work reliably. Stay updated, take care of your equipment, and use the flexibility of liquid ring pumps to achieve better success in your operations.
